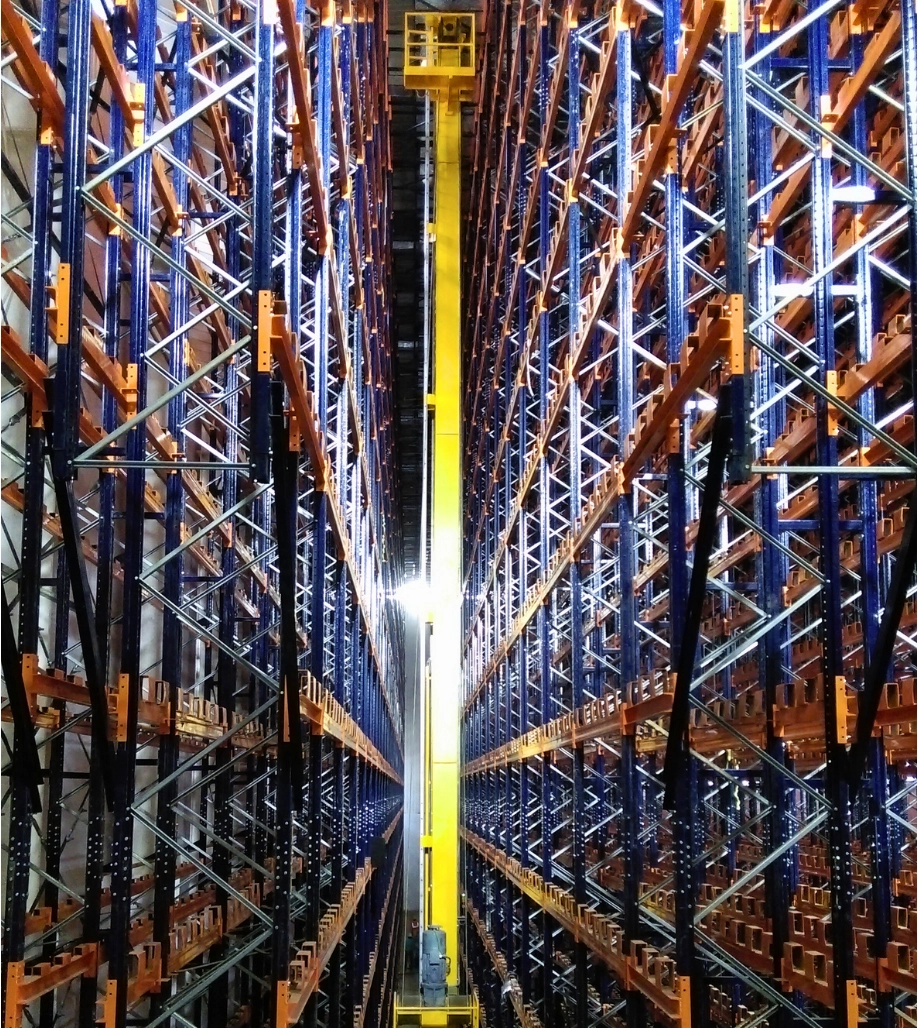

Pallet Automated Storage and Retrieval System(ASRS)

An Automated Storage and Retrieval System (ASRS) is a high-tech combination of equipment and controls that handles, stores, and retrieves inventory with precision and speed. Think of it as the "central nervous system" of a modern warehouse, where software replaces manual labour to move goods.

How ASRS Functions in a Warehouse

The system functions through a seamless integration of four primary components:

• Storage Structure: High-density racking systems that often reach much higher than traditional shelving, sometimes serving as the actual building frame (Clad-Rack).
• The S/R Machine (Storage/Retrieval): This is typically a Stacker Crane or a Shuttle. It moves vertically and horizontally along aisles to deposit or pick up loads.
• The Conveyor Interface: A "pick-up and deposit" (P&D) station where the ASRS interacts with the rest of the warehouse, moving goods to shipping docks or picking stations.
• WCS/WMS Software: The Warehouse Control System (WMS) tells the ASRS exactly where a pallet is located.

Pallet ASRS systems from Godrej Storage Solutions improve storage efficiency by utilising vertical space up to 50 metres high, achieving up to 90% density versus 70% in traditional racking. Automated stacker cranes enable precise, high-speed retrieval of pallets (up to 1,500 kg), eliminating aisle waste and optimising layouts for bulk goods. Integrated WMS provides real-time tracking, reducing errors and enabling seamless scalability, which boosts throughput while minimising footprint expansion needs.

Key Improvements

• Space Optimisation: Multi-deep storage doubles capacity per square foot.​
• Speed Gains: Retrieval times drop by 50%, accelerating operations.​
• Error Reduction: Automation ensures 99%+ inventory accuracy.

Yes, ASRS systems can absolutely be integrated into existing warehouses. In the industry, this is known as a Brownfield project. While building a new facility from scratch (Greenfield) allows for perfect optimisation, retrofitting an existing building is often the more cost-effective and sustainable choice.

Integration Strategies

There are two main ways ASRS is typically integrated into an active facility:

• Modular/Phased Retrofitting: You can automate one specific zone or aisle at a time. This allows the rest of your warehouse to continue manual operations, spreading out the capital investment and minimising disruption.
• Expansion/Annexing: Some businesses build a high-bay ASRS extension adjacent to their existing warehouse. The two are connected by conveyors or AMRs (Autonomous Mobile Robots), allowing the new "high-speed" zone to feed the older manual zones.

Yes, Godrej Storage Solutions' ASRS systems suit a broad spectrum of warehouses, from small distribution centres to large-scale facilities, across diverse industries.

To keep an ASRS (Automated Storage and Retrieval System) running at peak performance, maintenance must shift from "reactive" (fixing breaks) to "predictive" (preventing them). Because these systems often operate in high-density or "lights-out" environments, even minor friction can lead to significant bottlenecks.

1. Mechanical Maintenance

• Rail & Track Alignment: High-speed cranes and shuttles rely on perfectly straight paths. Technicians must regularly check for rail wear, debris, or loose floor bolts.
• Lubrication: Automated moving parts—especially lifting chains, wire ropes, and gearboxes—require precise lubrication schedules to prevent heat buildup and friction.
• Wheel & Drive Inspections: Checking for flat spots on drive wheels or wear on guide rollers ensures the machines move smoothly without vibrating the rack structure.

2. Electrical & Sensor Calibration

• Sensor Cleaning: ASRS systems use lasers and photo eyes to "see" pallet positions. Dust or film buildup on these lenses is the #1 cause of "ghost" errors or emergency stops.
• Cable Management: Inspecting "energy chains" (the flexible tracks carrying power cables) for cracks or kinks prevents sudden power failures during high-speed movements.
• Battery/Power Check: For shuttle-based systems, monitoring battery health and charging contact wear is essential for 24/7 uptime.

3. Software & Safety Systems

• Database Tuning: The Warehouse Control System (WCS) needs regular "defragmenting" or data cleanup to ensure communication between the WMS and the robots remains instantaneous.
• Safety Laser Scanners: Testing the emergency-stop zones and light curtains to ensure the system halts immediately if a human enters the automated zone.

ASRS systems enhance warehouse safety by automating heavy lifting, forklift operations, and high-reach tasks, reducing accidents like falls, strains, and collisions by up to 70%. Operators avoid hazardous areas as cranes and shuttles handle loads precisely, minimising human error in confined spaces.

They boost productivity through high-speed retrieval (hundreds of cycles/hour), real-time WMS integration for 99%+ accuracy, and vertical density that doubles throughput while cutting labour needs by 50-80%.
